PLASTIC SHIMS

(Polymex)

Colour coded from polyester films to meet the particular demands of the engineering, automotive, electrical, electronic industries.  Plastic packing shims are remarkably tough with very high compression and dielectric strengths, very low water absorption excellent dimensional stability over a wide range of temperatures and good resistance to most chemicals, ozone, direct sunlight etc.



Typical specification (the below properties are typical and no warranty is given or to be implied with respect to this information)

Relative density 1.40kg/m2
Water Absorption 0.60% (1 week 24oC)
Service Temperature -70oC to 130oC
Melting point 265oC

The above chart is a guide only.  Data Sheets are available upon request.

For sizes .001″ to .012″ (Material Specification Sheet A)

For sizes .015″ to .080″ (Material Specification Sheet B)



PLASTIC SHIM MATERIAL – Sheets



Thickness Colour 600mm x 1200mm
.025mm .001″ Purple  PS025
 .037mm  .0015″  Pink  PS037
 .05mm  .002″  Dark Blue  PS050
 .063mm  .0025′”  Black  PS063
 .075mm  .003″  Green  PS075
 .100mm  .004″  Amber  PS100
 .125mm  .005″  Brown  PS125
 .150mm  .006″  Clear  PS150
 .175mm  .007″  Peacock Blue  PS175
 .190mm  .0075″  Hazy  PS190
 .200mm  .008″  Tint Blue  PS200
 .225mm  .009″  Silver  PS225
 .250mm  .010″  White  PS250
.300mm .012″ Dark Green PS300
.350mm 0.14″ Natural PS350
.375mm .015″ Red PS375
.500mm .020″ Yellow PS500
.625mm .025″ Light Grey PS625
.750mm .030″ Light Blue PS750
1.00mm .040″ Tan PS1.00
1.25mm .050″ Charcoal Grey PS1.25
1.50mm .060″ Cream  PS1.50

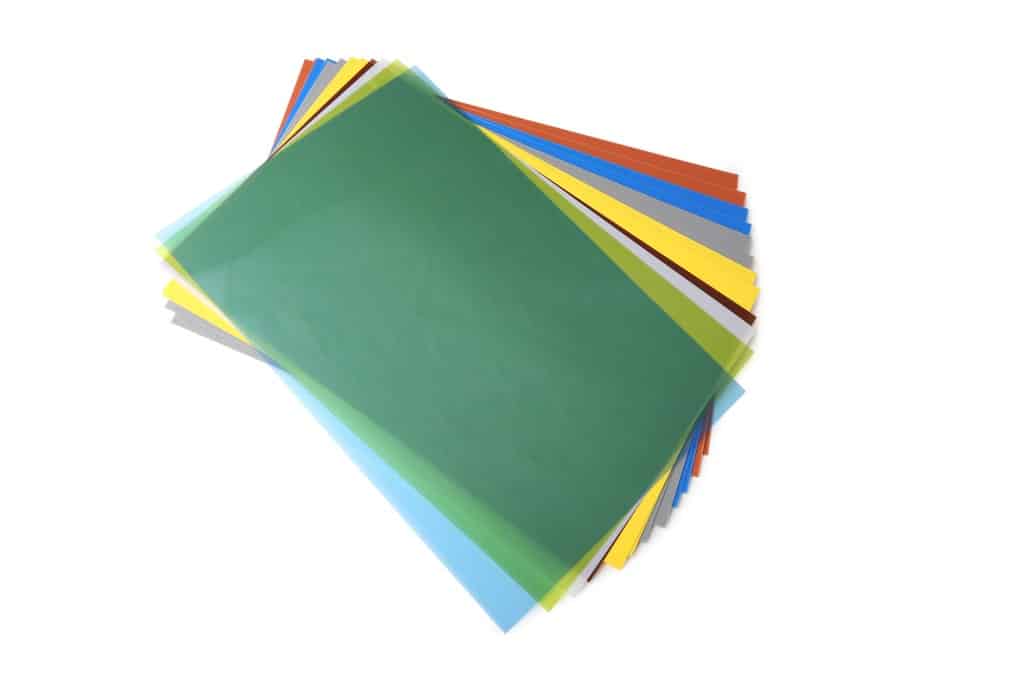

PLASTIC SHIM MATERIAL – Packets

Part # Packaged
PSASS12 200mm x 300mm  x 12 piece packet

2 x .05mm, .075mm, .125mm, .25mm, 1 x .50mm, .625mm, .75mm, 1.00mm
