Mild Steel Shim Stock

Low carbon mild steel shim stock is cold rolled to achieve its hardness of 165VPN (min) which is ideal for shims, washers, gaskets and also suitable for drawing or forming.  Low carbon mild steel cannot be hardened except by cold working because their carbon content is too low for significant heat treatment reaction to take place.  However, they can be case hardened to give a harder surface.

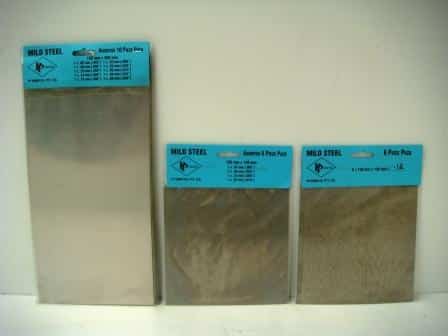

steel shim

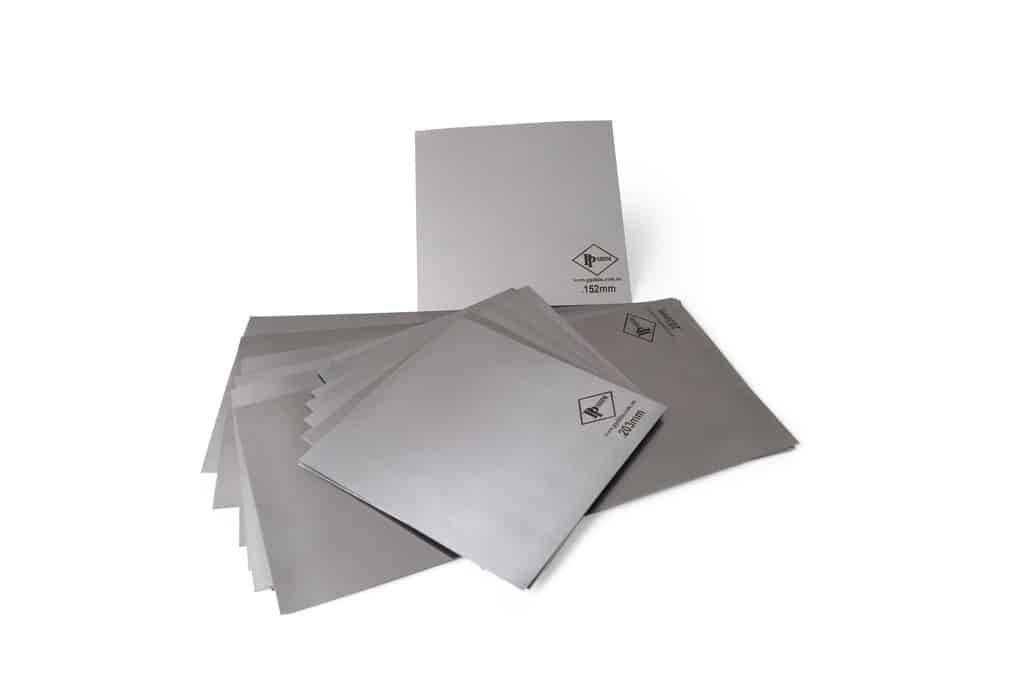

304 stainless steel shims

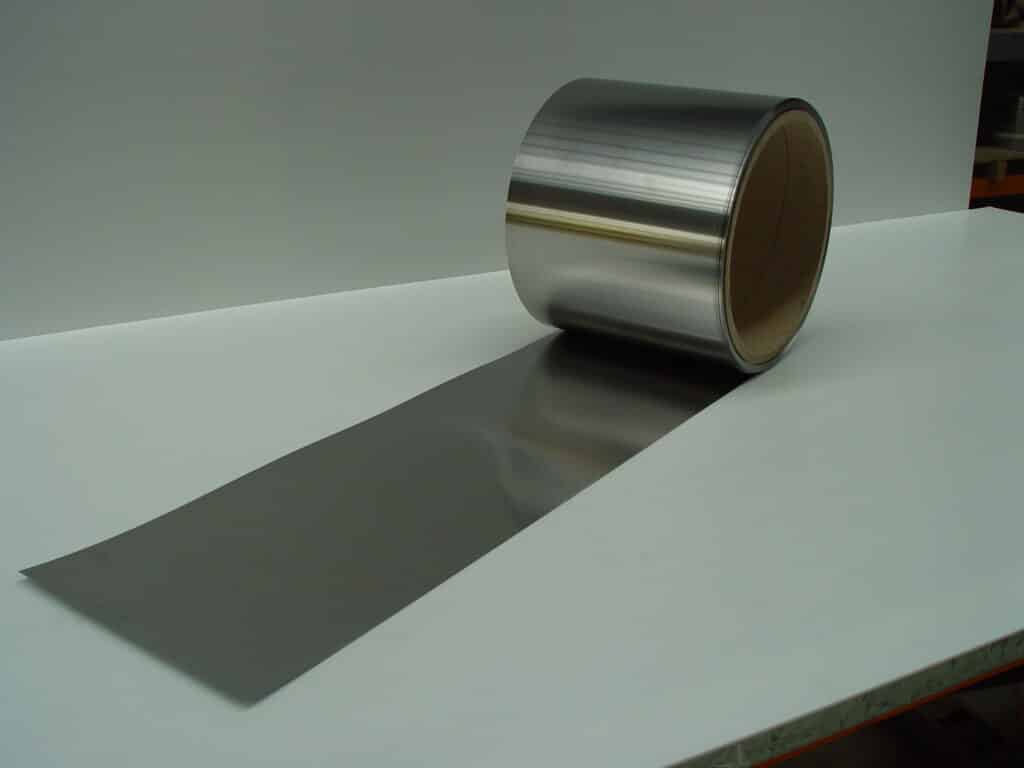

mild steel shim roll

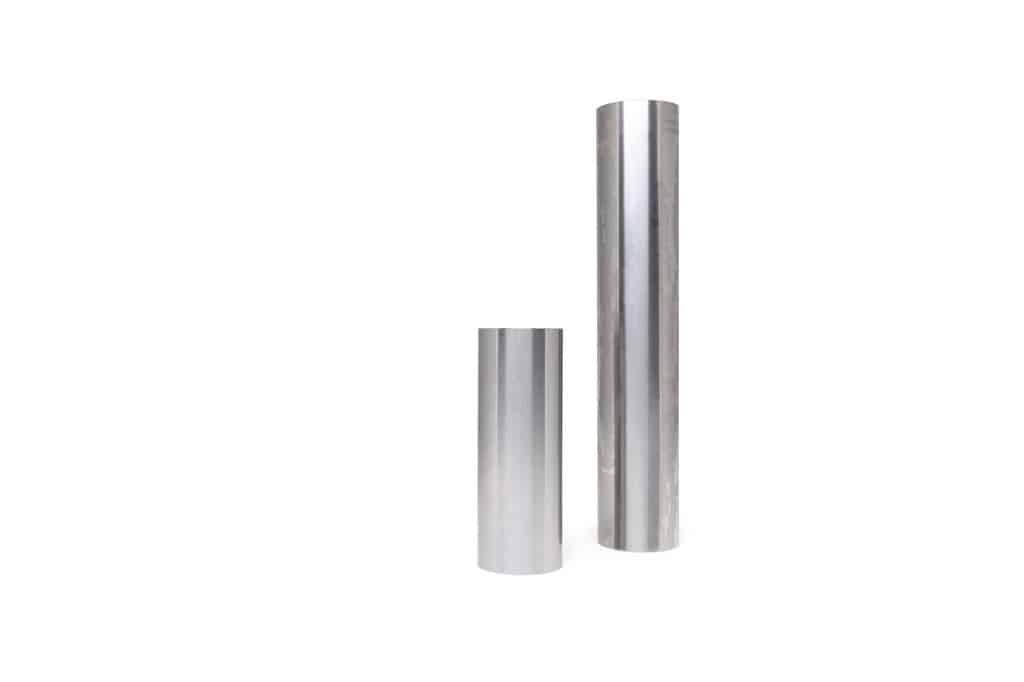

304 and 316 stainless steel shim packets

Typical Chemical Analysis (% by weight) BS1449 Pt 1 1991

(Chemical Analysis is a guide only)



Carbon

C

Manganese

Mn

Sulfur

S

Phosphorus

Ph

.05mm – .30mmCS40.12 (max)0.6 (max)0.05 (max)0.05 (max)
.40mmCA85t
.50mmCA70t

(Low Carbon Mild Steel)

Mild steel shim stock is available in a range of sizes from .050mm (.002″) – .508mm (.020″) and is sold in a variety of ways from convenient packets to continuous metres to suit your requirements.

MILD STEEL SHIM STOCK – Rolls

Also available in continuous metres



 Thickness150mm x 1 metre 300mm x 1 metre 600mm x 1 metre
.050mm.002″SR05SR053SR056
.076mm.003″SR08SR083
.102mm.004″SR10SR103
.127mm.005″SR12SR123SR126
.152mm.006″SR16SR163
.208mm.008″SR20SR203
.254mm.010″SR25SR253SR256
.305mm.012″SR30SR303
.381mm.015″SR40SR403
.508mm.020″SR50SR503

MILD STEEL SHIM STOCK – Packets



ThicknessPart #Packaged
.050mm.002″SP05150mm x 150mm x 6 pieces
.076mm.003″SP08150mm x 150mm x 6 pieces
.102mm.004″SP10150mm x 150mm x 6 pieces
.127mm.005″SP12150mm x 150mm x 6 pieces
.152mm.006″SP16150mm x 150mm x 6 pieces
.208mm.008″SP20150mm x 150mm x 6 pieces
.254mm.010″SP25150mm x 150mm x 6 pieces
.305mm.012″SP30150mm x 150mm x 6 pieces
.381mm.015″SP40150mm x 150mm x 6 pieces
.508mm.020″SP50150mm x 150mm x 6 pieces
AssortmentSP1150mm x 150mm
(2 x .05mm, .08mm, 1 x .12mm x .25mm)
AssortmentSP110150mm x 300mm
(1 x .05mm, .08mm, .10mm, .12mm, .16mm)
(1 x .20mm, .25mm, .30mm, .40mm, .50mm)



Contact us today on 02 4646 1166 for a quote or to discuss the options available with our mild steel shim stock.
